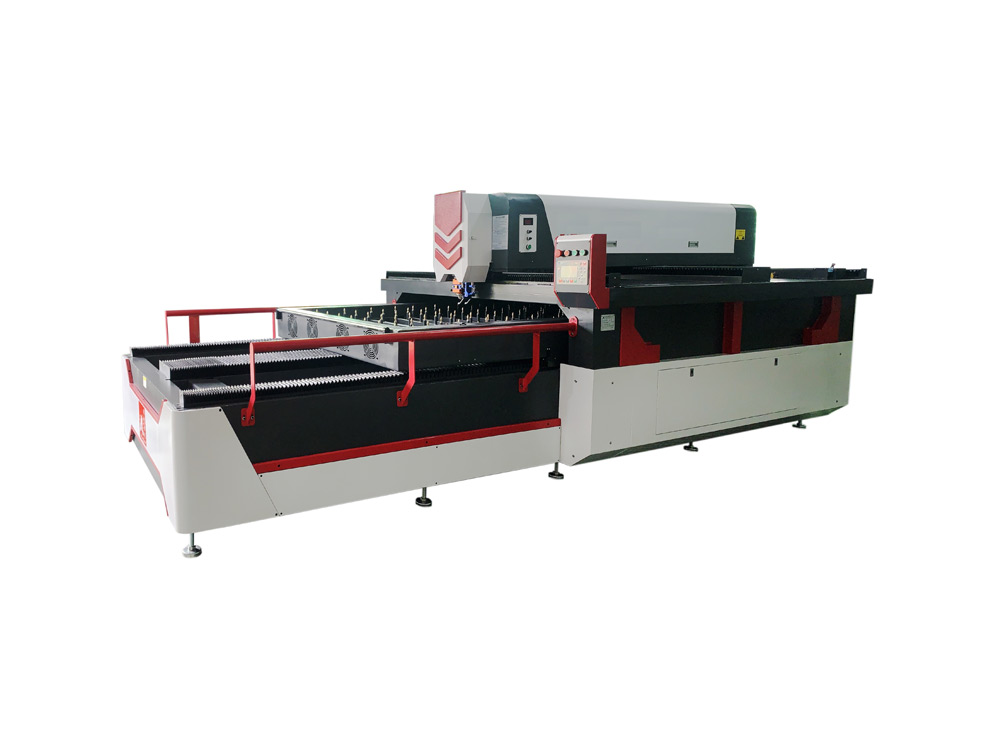

WMS-1325H
WMS-1325H
Features
Parameters
Functions
Machine configuration

The original imported 400-600W laser has perfect light speed quality and conversion efficiency, and has the characteristics of super-long life; namely, on-demand, no start-up cost, low energy consumption; high-quality precision screw guide rail transmission system; imported servo drive system; automatic focusing system; reasonable structured design makes the machine tool high-steel.

At the same time, it has reasonable smoke extraction and exhaust system, scientific assembly process control to ensure the high accuracy and high performance of machine tool movement key parts using cast aluminium structure to ensure high speed and stable operation of machine tool, light design to save space;

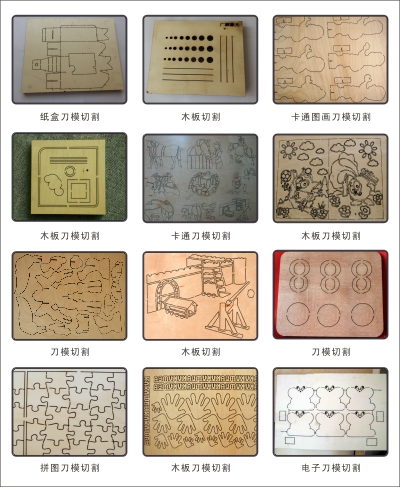

Applicable materials:

Self-adhesive knife board, density board, common laminated die cutting board, oil layer pressure die cutting board, hardwood laminated die cutting board and other die cutting materials, acrylic, thin metal plate, etc.

Applicable Technology:

Box type, adhesive, electronic board, cartoon board, greeting card, etc.

Model WMS -1325H
laser power 400W/600W
cuting board size 1200m * 1800mm (can be custom)
Cutting thickness 12mm-18mm (depending on material)
Cutting 18MM thick knife template 0.9 to 1.7 meters per
speed minute (depending on material)
positioning accuracy 0.05mm
Power Supply AC380V±10% 50hz/60A
Total power 650W
working temperature 0℃~40℃
Working humidity 5%-95%(Non-condensable water)
Cooling mode Water cooling
Support file format PLT,CDR,AI,DWG,DXF,DST
Weight 2500kg

Power

supply

demand

380v/50hz/60A
Shape size 4500MM*4000MM*1600MM
Other Three auxiliary gases (carbon dioxide, nitrogen and helium) are required.
