Cutting range

1300X1100mm

1700X1300mm

2500X1600mm

Machine dimensions

2260X1850mm

2660X2050mm

3460X2350mm

Overall weight

700KG

900KG

1100KG

Maximum cutting speed

1500mm/s

Maximum cutting thickness

45mm (Other thickness can be option)

Cutting accuracy

±0.05mm

Tool configuration

Oscillating tool,Creasing wheel,Drawing pen,Drag knife

Optional features

V-Grooving, different oscillating tool, CCD positioning system

Security protection methods

Light curtain, high-precision infrared reflection protection, touch detection

Transmission mode

Double drive precision gear, rack and pinion, upper silver guide rail, and servo drive

Data transmission method

Ethernet port, USB

Material fixed method

Vacuum table

Equipment using power supply

3phases 380V,50HZ/60HZ

Equipment usage air pressure

0.5mpa

Equipment functions

Cutting, Creasing,Kiss-cut, V-groove, plotting

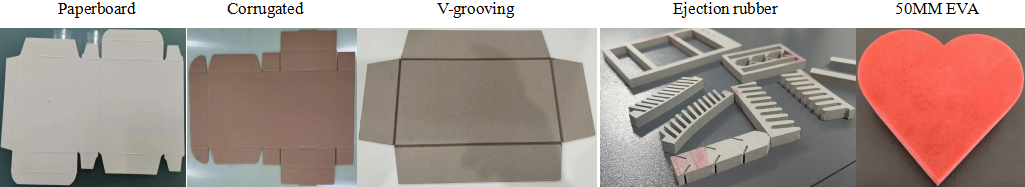

Cutting materials

Face paper, cardboard, pit paper, corrugated paper, gray board, EVA, KT board, honeycomb board, etc
