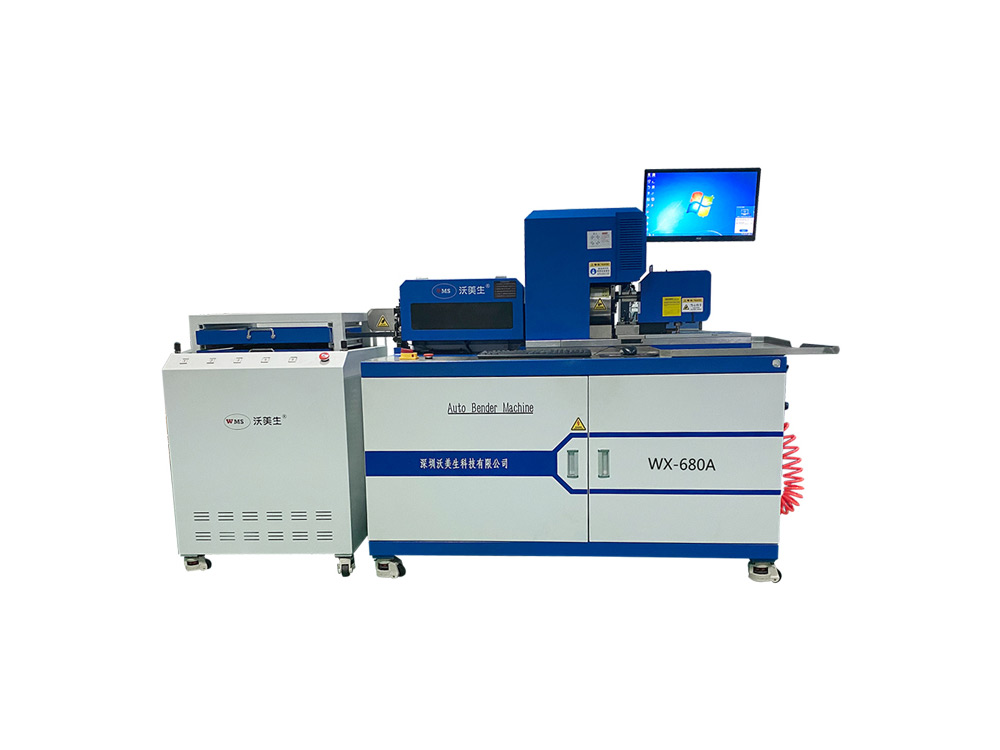

This machine is a full-function cutlass machine, specially designed for cigarette bag photoelectric and complex special-shaped plate design, rotary slotting mechanism won the national invention patent.
Adopt 8 blade design, can load 6 slotted saw blades and 2 dotting saw blades at the same time, 3 groups of slotting and 1 group of dotting. Can be opened once - pointed groove, 90 - degree groove, flat groove. Dot automatically identify dot width according to the line length of the mark, automatically identify the size and Angle of the slot.
Meet all the requirements of cigarette bag knife die software system has its own CAD redrawing function, select and modify graphics convenient and fast.
Feeding mechanism adopts 3-point one-line design to realize smooth operation of advance and retreat knife. Blade displacement anti - stuck cutter design, when the cutter stuck for some reason automatically stop feeding.
In case of serious die wear and failure to punch through, the propulsor will automatically reverse back and wait for termination of processing, and automatically recognize the eagle beak and barter automatically lengthen.
| Technical parameters | |
| Nothing thickness range: | 0.45mm-0.71mm |
| Nothing height range: | 8mm-30mm |
| Double saw blade dot blade height: | 23.8mm-30mm |
| Double saw blade dot blade thickness | 0.53mm-1.05mm |
| Support grinding head and tail hypotenuse range: | Software set the starting Angle arbitrary grinding hypotenuse |
| Range of flat groove supporting sharp corner: |
Include Angle 90 -180 degrees automatic identification slot Default flat width: 2mm software can be widened |
| Maximum unslotted bending Angle: | 100 ° |
| Minimum bending size of head and tail: | 1.5mm to 2 mm Depending on the blade thickness |
| U type minimum slot spacing: | Blade thickness +1mm or more |
| U-shaped minimum bending spacing: | Spacing 5mm(5mm above dimensions Software automatically releases back corner bending) |
| Minimum shear size of head and tail: | 1mm |
| Cutting mode: |
Multi-function scissors, can cut head and tail waste It can automatically judge the shearing in both directions at one time, and pull back to shear when the shear level is insufficient |
| One-time shear blade range: |
Height: 8mm-32mm (40 customized) Thickness: 0.53 mm to 1.05 mm |
| Feeding accuracy: | ±0.05mm |
| Flatness of bending: | ±0.5 mm |
| Support bending blade height: | 8 mm -32 mm (40 customized) |
| Supported bending blade thickness: | 0.45 mm -1.07 mm |
|
Bridge width dimensions: Size of olecranon: |
Width optional: 3mm to 6mm Bridge height manual adjustment rod adjustment Software according to the bridge width support automatic wide |
| Best graphics format: | dxf.ai.dwg |
| Equipment environment: | Ventilated, dry below 40 degrees |
| Equipment pressure requirements: | 4Kg/cm2 pressure, 10mm throat diameter |
| Power supply requirements: | AC:220V 50Hz must be properly grounded |
| Machine power: | 3.5kw |
| Weight of whole machine including wooden case: | Machine 950KG lifting tool tray 250KG |
| Equipment outline, cover area and wooden box size: |
280cm×75cm×165cm (footprint) 165cmX165cmX85cm(Equipment wooden case size) 85cmX90cmX125cm(lift warehouse wooden box size) |
| Machete machine system support language: | Simplified Chinese and English |
| Software Computer operating platform: | Windows7 or later |
The whole machine is equipped with 8-axis integrated high-speed control system, the whole machine has 8 sets of servo drive, Ethernet transmission control, fast and stable.
Feeding adopts double clip knife, front and back teeth Taiwan TBI screw, equipped with two upper and lower silver guide rails, the machine is powered by advanced Domestic lechuang brand high precision servo drive, equipped with Japan Xinbao high precision reducer, high efficiency and stability.
Pneumatic part adopts Japan SMC cylinder, Taiwan original Yadeke solenoid valve, Taiwan series of sensors and Panasonic laser position sensor.
The combined power adopts refined turbine motor and energy saving motor, low dryness sound and energy saving.
