Feeding mechanism adopts 3-point one-line design to realize smooth operation of advance and retreat knife.
Blade displacement anti - stuck cutter design, when the cutter stuck for some reason automatically stop feeding.
When the bridge position die is severely worn and cannot be pierced, the propulsive motor will automatically reverse back to the waiting position and prompt to stop processing.
Equipment compatible with different height and thickness of the blade, different material using different parameters to select curved knife.
The whole machine is equipped with 2 energy-saving motors to control cutting and bridge position and eagle-tip to improve the life of the mold. Eagle-tip mechanism is independently researched and developed, and has won the national patent.
The use of up and down separate bi-directional eagle mouth, eagle mouth without limitation, software automatically identify the machete need to process eagle mouth and barter automatically lengthened, convenient and fast change bending mold.
The machine adopts independent mold, low maintenance cost.
| Double saw blade dot blade height: | 23.8mm-30mm（customize） |
| Double saw blade dot blade thickness | 0.53mm-1.05mm（customize） |
| Single blade saw blade dot width range: | 0.3mm-1.5mm（customize） |
| Maximum unslotted bending Angle: | 100° |
| U-shaped minimum bending spacing: | 1.5-2mm depending on the blade thickness |
| U-shaped minimum bending spacing: | Spacing 5mm(5mm above dimensions Software automatically avoid releasing back corner bending) |
| Minimum shear size of head and tail: | 1mm |
| Cutting mode: | One - time two-way automatic judgment shear, when the insufficient shear level automatic two - time multi - feed pull back shear |
| One-time shear blade range: |
Height：8mm-35mm thickness：0.45mm-1.05mm |
| Feeding accuracy: | ±0.05mm |
| Flatness of bending: | ±0.5 mm |
| Support bending blade height: | 8 mm -35 mm（40 customize） |
| Support bending blade height: | 0.45 mm -1.07 mm |
| Minimum bending arc: |
1.5pt: R0.5(0.1-0.4 automatic release) 2.0pt: R1.0(0.3-0.9 automatic release) 3.0PT: R1.5(0.3-1.4 automatic release) |
| Bridge width size: |
Width optional: 3mm to 6mm Bridge height manual adjustment rod adjustment Software according to the bridge width support automatic wide |
| Best graphics format: | dxf.ai.dwg |
| Equipment environment: | Ventilated, dry below 40 degrees |
| Equipment pressure requirements: | 4Kg/cm2 pressure, 10mm throat diameter |
| Power supply requirements: | AC:220V 50Hz must be properly grounded |
| Machine power: | 1.2kw |
| Weight of whole machine including wooden case: | 450Kg |
| Equipment outline, cover area and wooden box size: | 230cm×75cm×165cm (footprint) 175cmX140cmX75cm(Equipment wooden case size) |
| Auto bending machine system support language: | Simplified Chinese and English |
| Software Computer operating platform: | Windows7 or later |

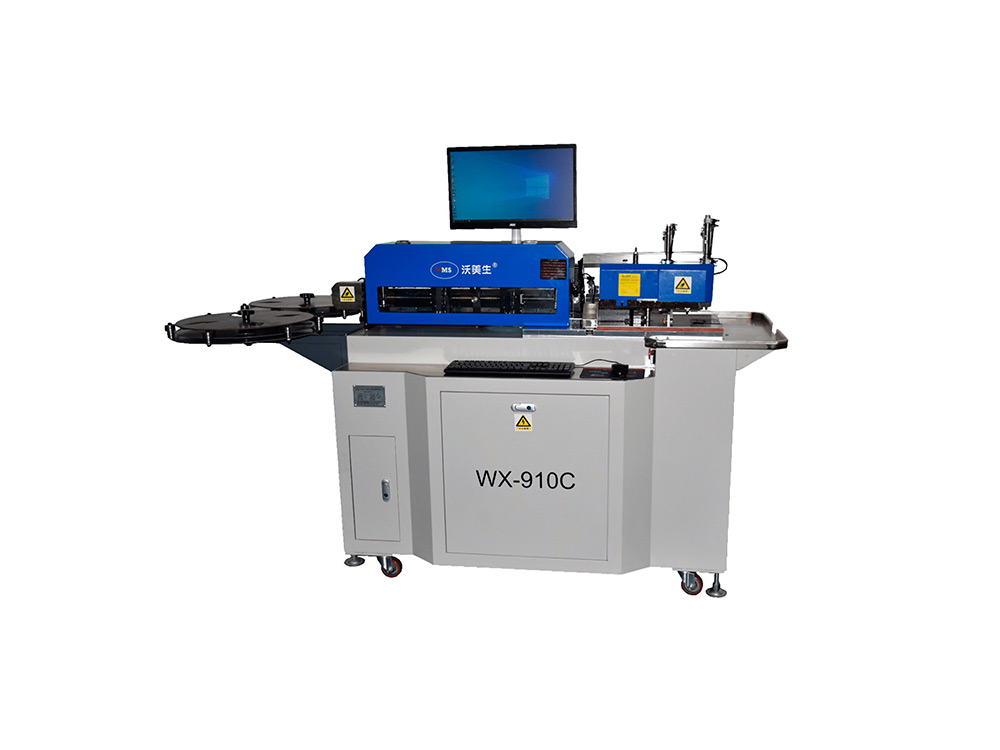

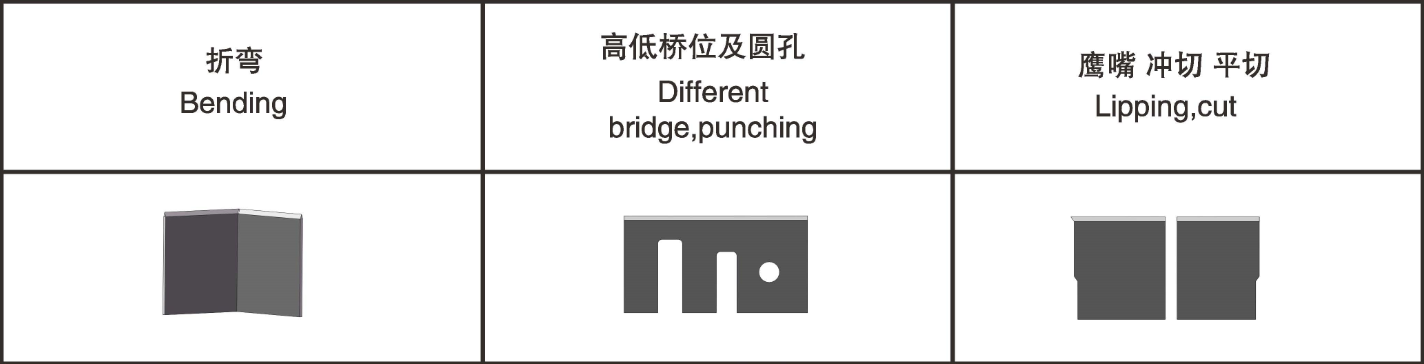

This machine is a multi-functional cutlass machine, equipped with a 3-axis control system, compatible with 5 plate lifting tool tray library.
The software system has its own CAD redrawing function, which is convenient for selecting and modifying graphics.
The whole machine adopts 3 axis advanced domestic controller, stable transmission.
Feeding adopts self-developed double chuck and reverse teeth Taiwan customized TBI screw equipped with 2 silver guide rails, bending feeding adopts the most advanced Lectron brand servo controller of domestic listed companies, efficient and stable.
Pneumatic part adopts Japan SMC cylinder, Taiwan original Yadeke solenoid valve, Taiwan Yangming switch and other bridge position, scissors respectively using refined energy-saving motor, low noise, electricity saving.
