The software system has its own CAD editing function, which is convenient and quick for selecting and modifying graphics.
The feeding adopts a 3-point one-line design to realize the smooth operation of the advancing and retreating knives.
Blade give way type anti jam knife design, when the blade jams for some reason, the feeding will stop automatically.
When the double-station combined mold is severely worn and cannot be punched through, the propulsion motor will auto reverse and return to wait and prompt to terminate processing.

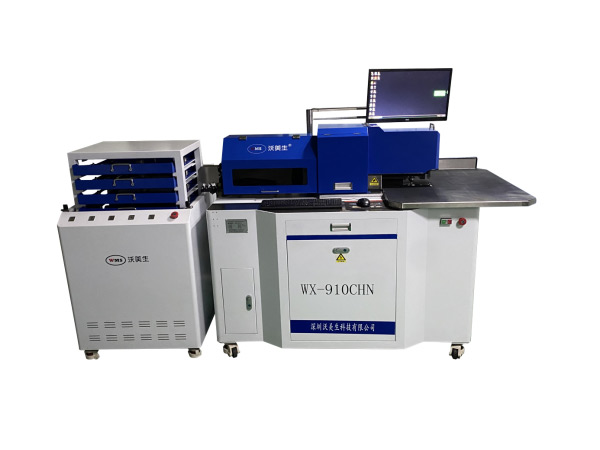

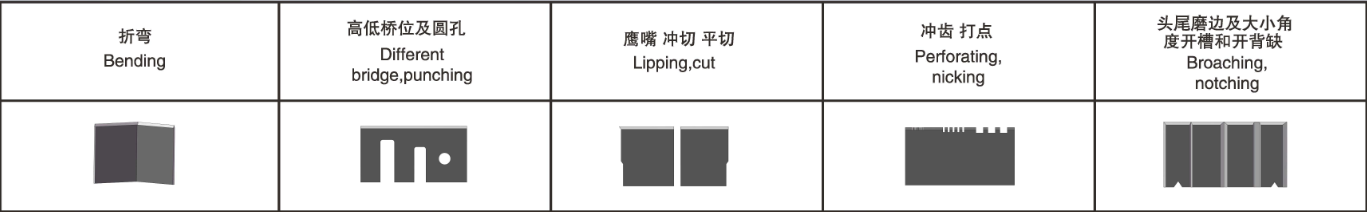

Auto recognition of the Lipping and automatic lengthening of the barge, the whole machine adopts a 3-head design to achieve a single set of broaching and single set of Nicking.
The nicking can auto identify the dot width according to the length of the marked line, auto identify the size and angle, and auto open a large-angle broaching.
| Broaching thickness | 0.45mm-0.71mm |
| Broaching height | 8mm-23.8mm |
| Nicking height | 8mm-23.8mm |
| Nicking thickness | 0.53mm-0.71mm |
|
Support grinding head and tail bevel range |
The software can set the starting angle to grind the beveled edge arbitrarily |
| Maximum unslotted bending Angle: | 100° |
| Minimum bending size of head and tail: | 1.5-2mm depending on the blade thickness |
| U-shaped minimum bending spacing: | Spacing 5mm(5mm above dimensions Software automatically avoid releasing back corner bending) |
| Minimum shear size of head and tail: | 1mm |
| Cutting mode: | One - time two-way automatic judgment shear, when the insufficient shear level automatic two - time multi - feed pull back shear |
| One-time shear blade range: |
Height：8mm-23.8mm（Exceed bending break） thickness：0.45mm-0.71mm |
| Feeding accuracy: | ±0.05mm |
| Flatness of bending: | ±0.5mm |
| Support bending blade height: | 8mm -23.8mm(more than option) |
| Support bending blade height: | 0.45mm -0.71 mm |
| Minimum bending arc: | Blade thickness +1mm or more |
| Bridge width size: |
Width optional: 3mm to 6mm Bridge height manual adjustment rod adjustment Software according to the bridge width support automatic wide Olecranon size manual adjustment lever adjustment |
| Best graphics format: | dxf.ai.dwg |
| Equipment environment: | Ventilated, dry below 40 degrees |
| Equipment pressure requirements: | 4Kg/cm2 pressure, 10mm throat diameter |
| Power supply requirements: | AC:220V 50Hz must be properly grounded |
| Machine power: | 2.0kw |
| Weight of whole machine including wooden case: | 500KG |
| Equipment outline, cover area and wooden box size: |
230cm×75cm×165cm(footprint) 165cmX135cmX80cm(Equipment wooden case size) |
| Machete machine system support language: | Simplified Chinese and English |
| Software Computer operating platform: | Windows7 or later |
The whole machine has 7 sets of servo drives and adopts Ethernet transmission control, which is fast and stable.
The feeding adopts double clamping cutters, front and back teeth Taiwan TBI front and rear screw rods, equipped with upper and lower upper and lower silver guide rails.
The whole machine is driven by high-precision servo drives imported from Japan, and equipped with Japanese Xinbao high-precision reducers, which are efficient and stable.
The pneumatic part adopts Japanese SMC cylinder, Taiwan original AirTAC solenoid valve, and Taiwan series sensor.
Combined power adopts lapping turbine motor and energy-saving motor respectively, with low noise and power saving.
