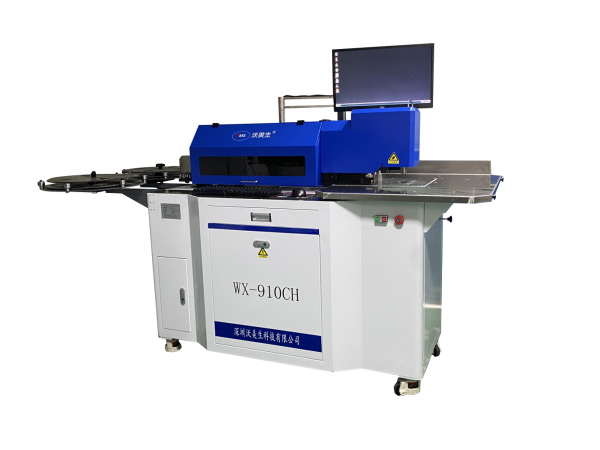

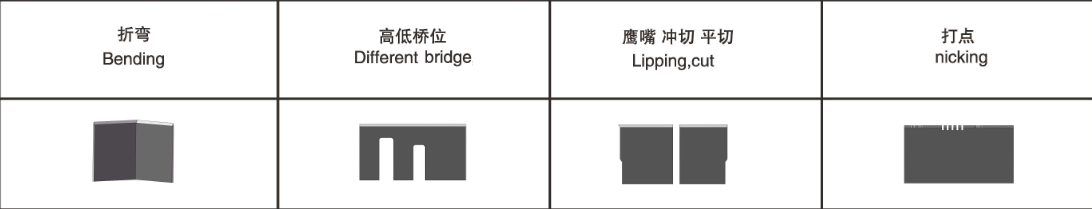

This machine is a multi-functional cutlass machine, software system has its own CAD redrawing function, select and modify graphics convenient and fast.
Feeding mechanism adopts 3-point one-line design to realize smooth operation of advance and retreat knife.
Blade displacement anti - stuck cutter design, when the cutter stuck for some reason automatically stop feeding.
In case of serious die wear and failure to penetrate, the propulsive motor will automatically reverse back and wait for termination of processing.
Automatic recognition eagle tip and barter automatic lengthening.
| Height of single blade saw blade: | 23.8mm-32mm（customize） |
| Thickness of single blade saw blade: | 0.53mm-1.05mm （customize） |
| Maximum unslotted bending Angle: | 100° |
| Minimum bending size of head and tail: | 1.5-2mm depending on the blade thickness |
| U-shaped minimum bending spacing: | Spacing 5mm(5mm above dimensions Software automatically avoid releasing back corner bending) |
| Minimum shear size of head and tail: | 1mm |
| Cutting mode: | One - time two-way automatic judgment shear, when the insufficient shear level automatic two - time multi - feed pull back shear |
| One-time shear blade range: |
Height：8mm-23.8mm（Exceed bending break） thickness：0.45mm-0.71mm |
| Feeding accuracy: | ±0.05mm |
| Flatness of bending: | ±0.5mm |
| Support bending blade height: | 8mm -32mm |
| Support bending blade height: | 0.45mm -1.05 mm |
| Minimum bending arc: | Blade thickness +1mm or more |
| Bridge width size: |
Width optional: 3mm to 6mm Bridge height manual adjustment rod adjustment Software according to the bridge width support automatic wide Olecranon size manual adjustment lever adjustment |
| Best graphics format: | dxf.ai.dwg |
| Equipment environment: | Ventilated, dry below 40 degrees |
| Equipment pressure requirements: | 4Kg/cm2 pressure, 10mm throat diameter |
| Power supply requirements: | AC:220V 50Hz must be properly grounded |
| Machine power: | 2.0kw |
| Weight of whole machine including wooden case: | 500KG |
| Equipment outline, cover area and wooden box size: |
230cm×75cm×165cm(footprint) 165cmX135cmX80cm(Equipment wooden case size) |
| Machete machine system support language: | Simplified Chinese and English |
| Software Computer operating platform: | Windows7 or later |
The whole machine is equipped with 4-axis integrated high-speed control system, the whole machine has 4 sets of servo drive, 1 set of turbine power energy-saving motor, the system adopts Ethernet transmission control, fast and stable.
Feeding adopts double clip knife, front and back screw of Taiwan TBI, equipped with two upper and lower silver guide rails.
Bending adopts domestic advanced lechuang high precision servo drive, equipped with Japan xinbao high precision reducer, efficient and stable.
Pneumatic part adopts Japan SMC cylinder, Taiwan original Yadeke solenoid valve, Taiwan series of sensors.
