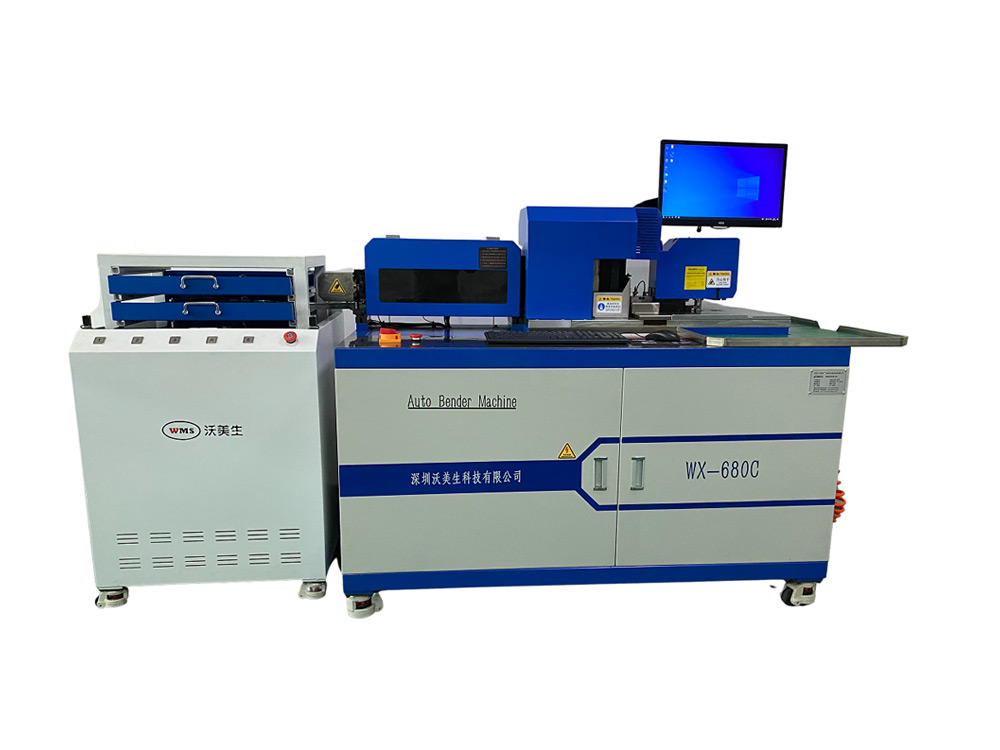

本机为全功能弯刀机，软件系统具有自己的CAD重绘功能，选择和修改图形方便快捷。
进料机构采用三点单线设计，实现进退刀的平稳运行。
刀片位移防卡刀设计，当刀具因某种原因卡住时自动停止进给。
如果模具严重磨损且无法穿透，推进电机将自动反转并等待加工终止。
自动识别鹰嘴和易货自动加长，整机采用5刀头设计，实现双组开槽。
点根据标记的线长自动识别点宽度，自动识别槽的大小和角度。
| Technical Parameters | The latest version is subject to change without notice |
| Slotted blade thickness range： | 0.45mm-0.71mm |
| Slotted blade height range： | 8mm-30mm |
| Blade height of double-set saw blade： | 23.8mm-30mm |
| Thickness of double-blade saw blade： | 0.53mm-0.71mm |
| Support grinding head and tail bevel range： | The starting angle can be set by software |
| Maximum non-groove bending angle： | 100° |
| Minimum bending size of head and tail： | 1.5mm-2mmAccording to blade thickness |
| U-shaped minimum slot spacing： | Blade thickness + 1mm or more |
| U-shaped minimum bending distance： | Spacing 5mm (size above 5mm the software automatically releases the back corner bending) |
| Minimum cutting size of head and tail： | 1mm |
| Cut off method： | Multifunctional scissors, which can punch the head and tail scraps, can automatically judge the cut off in two directions at a time, and automatically feed back to the second multi-feed when the cutting position is not enough |
| Disposable cutting blade range： |
Height：8mm-23.8mm（Overshoot） Thickness：0.45mm-0.71mm |
| Feeding accuracy： | ±0.05mm |
| Bending flatness： | ±0.5 mm |
| Support curved blade height： | 8m m-30 mm |
| Support curved blade thickness： | 0.45 mm -0.71 mm |
|
Bridge width： Eagle mouth size： |
Width 3mm-6mm optional Bridge position manual adjustment lever adjustment The software supports automatic widening according to the bridge width Eagle mouth size manual adjustment lever adjustment |
| Best graphics format： | dxf.ai.dwg |
| Equipment use environment： | Ventilation, dry below 40 degrees |
| Equipment air pressure requirements： | 4Kg/cm2pressure,10mm throat diameter |
| Installation power requirements： | AC:220V 50Hz Need to be effectively grounded |
| Total power： | 2.9kw |
| The whole machine contains the weight of the wooden box： | 750Kg |
| Equipment size： | 2300cm×75cm×165cm（Wooden box） |
| Bending machine system support language： | Simplified Chinese, English |
| Operating platform required for software computers ： | Windows7 or later operating system |
The whole machine is equipped with 6-axis integrated high-speed control system, the whole machine has 6 sets of servo drive, Ethernet transmission control, fast and stable.
Feeding adopts double clip knife, front and back teeth Taiwan TBI screw, equipped with two upper and lower silver guide rails, bending adopts the advanced domestic brand high precision servo drive, equipped with Japan xinbao high precision reducer, high efficiency and stability.
Pneumatic part adopts Japan SMC cylinder, Taiwan original Yadeke solenoid valve, Taiwan series of sensors.
The combined power adopts refined turbine motor and energy saving motor, low dryness sound and energy saving.
