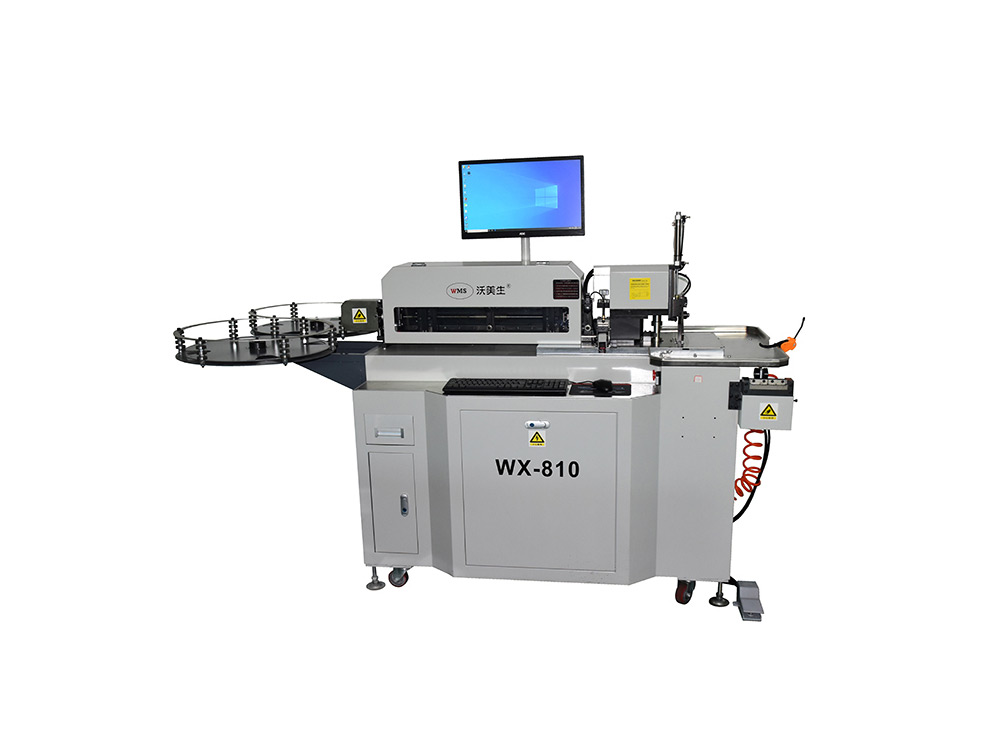

This machine is a multi-functional cutlass machine, equipped with a 3-axis control system, compatible with 5 plate lifting tool tray library.
The software system has its own CAD redrawing function, which is convenient for selecting and modifying graphics.
The feeding mechanism adopts three-point one-line design, which can realize the smooth operation of advance and retreat knife under the state of expansion force and traction force of 50x1.05mm high knife.
Blade displacement anti - stuck cutter design, when the cutter stuck for some reason automatically stop feeding.
When the bridge position die is severely worn and cannot be pierced, the propulsive motor will automatically reverse back to the waiting position and prompt to stop processing.
Equipment compatible with different height and thickness of the blade, different material using different parameters to select curved knife.
The whole machine is equipped with 2 energy-saving motors to control cutting, bridge position and eagle mouth, and improve the life of the mold.
The software can automatically identify the place where the scimitar needs to be processed and automatically lengthen the barter. It is convenient and quick to change the bending die.
The machine adopts independent mold, low maintenance cost.
| Technical parameters | |
| Double saw blade dot blade height: | 23.8mm-30mm（customize） |
| Double saw blade dot blade thickness | 0.53mm-1.05mm（customize） |
| Maximum unslotted bending Angle: | 100° |
| Minimum bending size of head and tail: | 1.5-2mm depending on the blade thickness |
| Minimum bending arc: |
2PT: R1 directly in place (0.3-0.9 automatic release) 3PT: R2 directly in place (0.3-1.9 automatic release) 4PT: R3 directly in place (0.3-2.9 automatic release) |
| U-shaped minimum bending spacing: | Spacing 5mm(5mm above dimensions Software automatically releases back corner bending) |
| Minimum shear size of head and tail: | 1mm |
| Cutting mode: | One - time two-way automatic judgment shear, when the insufficient shear level automatic two - time multi - feed pull back shear |
| One-time shear blade range: |
Height：8mm-50mm（60 bending break） thickness：0.45mm-1.05mm |
| Feeding accuracy: | ±0.05mm |
| Flatness of bending: | ±0.5 mm |
| Support bending blade height: | 23.8mm -60mm |
| Support bending blade height: | 0.53mm -1.07 mm |
| Bridge width size: |
Width optional:5mm-6mm Bridge height manual adjustment rod adjustment Software according to the bridge width support automatic wide |
| Best graphics format: | dxf.ai.dwg |
| Equipment environment: | Ventilated, dry below 40 degrees |
| Equipment pressure requirements: | 4Kg/cm2 pressure, 10mm throat diameter |
| Power supply requirements: | AC:220V 50Hz must be properly grounded |
| Machine power: | 3.5kw |
| Weight of whole machine including wooden case: | Machine 950KG lifting tool tray 250KG |
| Equipment outline, cover area and wooden box size: |
280cm×75cm×165cm(footprint) 165cmX165cmX85cm(Equipment wooden case size) |
| Machete machine system support language: | 85cmX90cmX125cm(lift warehouse wooden box size) |
| Software Computer operating platform: | Simplified Chinese and English |
Feeding and bending equipped with 2 high power servo motor brand.
Bridge position and scissors are powered by 2 domestic brands, feeding using Taiwan silver guide rail, TBI bi-directional custom teeth screw, Taiwan Yangming sensor and Airtac solenoid valve, SMS cylinder.
The vulnerable parts are made of steel moulds imported by Yisheng 100, which are durable.
Independent research and development of the control system, using the most advanced domestic integration, fast and stable transmission.
