1. WX-50 series is stable high performance steel rule auto bending machine. It is suitable rule height from 23.8-60MM,thickness Max to 3PT.
2. WX-50 series adopts bend and cut combination mould,much more faster and stable than the traditional bend and cut mould separate mode. Save labor cost and high efficiency.
3. Equip with 4 in 1 combination mould,support quick replacement for each mould.Mould raw materials from Europe,stable quality and longer life.

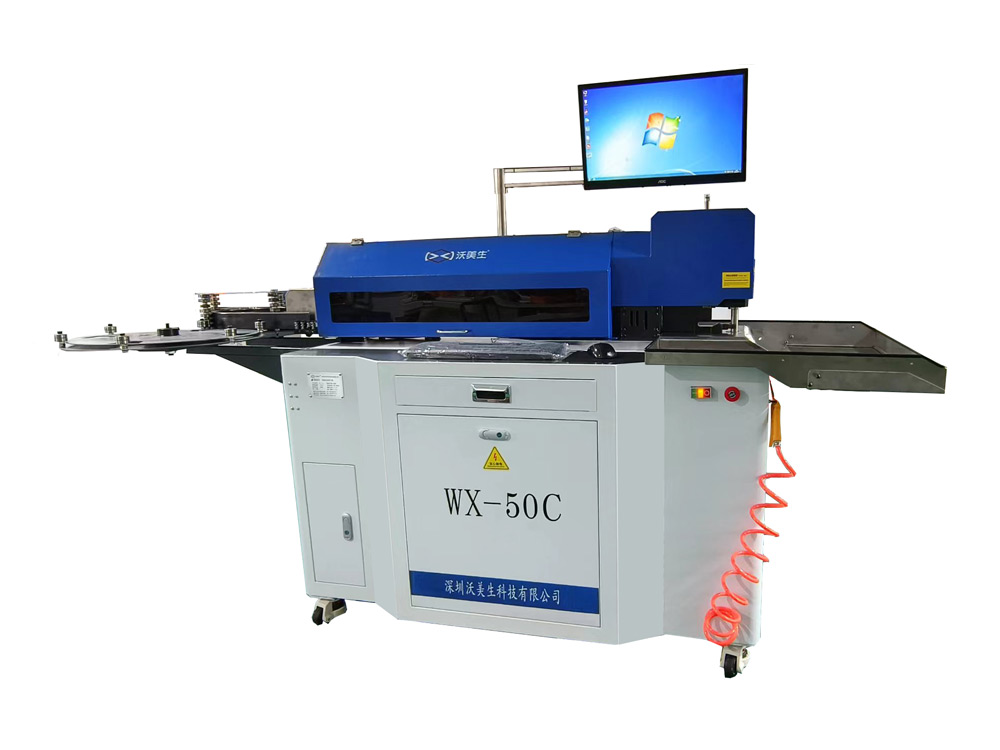

4. WX-50C is basic model of 50series,also has the option for Broaching,other function mould.
4. Stable rule feeding system. Steel rule anti-stuck design, automatically stop feeding when rule get stuck.
5. Equip with servo motor and energy saving turbine motor, stable and good performance.
| Max. bending angle without broaching: | 100° |
| Min. bending size of two sides: | 1.5mm-2 mm,according to steel rule thickness |
| Min. bending distance of U-shaped : | 5mm(distance less than 5mm，software automatically releases the beside angle for bending) |
| Min. Broaching distance of U-shaped: | Above Rule thickness+1mm |
| Min.cutting size of two sides: | 1mm |
| Cut off method： |
Multifunctional scissors: One time fast-cut for lip and seamless cutting. Automatic recognition cutting directions. |
| Rule range for one time cut off : |
height：23.8mm-50mm（60MM can be option） thickness：Max to 3PT |
| Feeding accuracy： | ±0.05mm |
| Bend flatness： | ±0.2 mm |
| Support rule height of bending： | 8 mm -32 mm |
| Support rule thickness of bending： | 0.45 mm -1.05 mm(1.5,2,3PT) |
| Minimum curved arc： |
1.5 PT：R0.5(0.1-0.4 auto open） 2.0 PT：R1.0(0.3-0.9 auto open） 3.0 PT：R1.5(0.3-1.4 auto open） |
|
Bridge width size： Lip size： |
Bridge width 3mm/6mm Bridge height can be adjusted manually. Different width can be set by software. Lip size can be adjusted manually. |
| Supported file format： | Dxf.ai.dwg |
| Machine working environment： | Ventilation，Dry, below 40 degrees |
| Air pressure： | 4Kg/cm2 pressure，10mm Diameter air pipe. |
| Power supply： | AC:220V,50Hz Need to be effectively grounded |
| Total power： | 2.0kw |
| Machine weight after packing: | 520KG |
| Equipment appearance and footprint and wooden box size： |
230cm*75cm*165cm（floor plan size） 175cm*140cmX75cm(machine seawood box size） Option: 85cm*90cm*125cm(rule elevator seawood box size) |
| Support language： | Chinese、English |
| Computer system： | Windows7 Above version operating system |
1. The whole machine equips servo drive imported from Japan, punching and cutting power adopts turbo power energy-saving motor.
2. The system adopts Ethernet transmission control, fast and stable.
3. Feeding adopts two rule clamps, TBI linear guide,ball screw, equipped with Japan SHIMPO high precision reducer, efficient and stable.
4. The pneumatic part adopts Japanese SMC cylinder, Taiwan original Yadak solenoid valve, Taiwan series sensor.
